FEATURES
SEAT
Seat equipped with spring fitted hinges that offers more convenience during storage compartment accessibility.
SUSPENSIONS
Twin rear suspension for better riding stability and comfort.
SAFETY GRAB BAR
An easy to reach, ergonomically designed safety grab bar for the pillion rider.
BRAKES
Front and rear disc brakes for optimum braking performance.
FUEL TANK
A 6.6L fuel tank that is strategically positioned in the center tunnel easier reach and convenience.
LIGHTS
LED headlights and rear brake lights for brighter and clearer illumination during riding.
FLOOR SPACE
Riding position with a high degree of freedom and comfort for booth small and large physiques.
STORAGE COMPARTMENT
Under seat storage capable of holding helmet. (Some helmets may not fit in depending on shape).

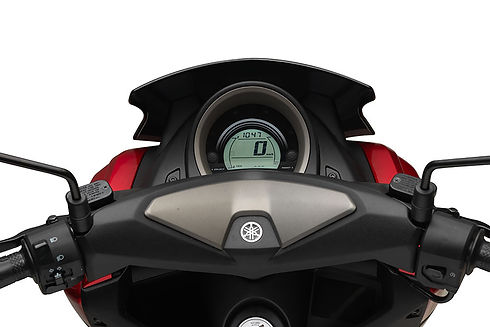

INSTRUMENT PANEL
A full LCD instrument panel which offers a modern and trendy design.
ENGINE 155CC
New liquid-cooled, Single Overhead Camhsaft (SOHC), 4-valves, 155cc BLUECORE engine with Variable Valve Actuation (VVA) and Continuous Variable Transmission (CVT).
SPECIFICATION
ENGINE
-
Type: Single Cylinder, Liquid-Cooled, 4-stroke, SOHC, 4-valve
-
Displacement: 155 cm3
-
Bore x Stroke: 58.0 mm x 58.7 mm
-
Compression Ratio: 10.5:1
-
Maximum Power: 11.1 kW @ 8,000 rpm
-
Maximum Torque: 14.4 Nm @ 6,000 rpm
-
Lubrication System: Force-Feed Lubrication, Wet Sump
-
Fuel Supply System: Fuel-Injected
-
Ignition System: TCI
-
Starting System: Electric Starter
-
Fuel Tank Capacity: 6.6 liter
TRANSMISSION
-
Transmission Type : V-Belt Automatic
CHASIS
-
Overall Length: 1,955 mm
-
Overall Width: 740 mm
-
Overall Height: 1,115 mm
-
Seat Height: 765 mm
-
Wheelbase : 1,350 mm
-
Min. Ground: Clearance135 mm
-
Wet Weight: 136 kg
BRAKES
-
Front: Hydraulic Single Disc, Ø 230 mm
-
Rear: Hydraulic Single Disc, Ø 230 mm
SUSPENSION
-
Front Suspension Type: Telescopic
-
Rear Suspension Type: Unit Swing
TIRES
-
Front Tyre: 110/70-13
-
Rear Tyre: 130/70-13
COLOUR SELECTION
OVERVIEW
The new Yamaha NMAX is a standout in the class of its own with its premium design and innovative technology. This Yamaha has adapted the design DNA from the iconic Yamaha T-MAX which prides itself as the sporty urban commuter. Stylish looks and international standard specifications that includes a powerful 155cc liquid-cooled Blue Core Engine with VVA technology, the NMAX is prepared to provide you sophisticated riding sensation in your everyday trip on the road.
